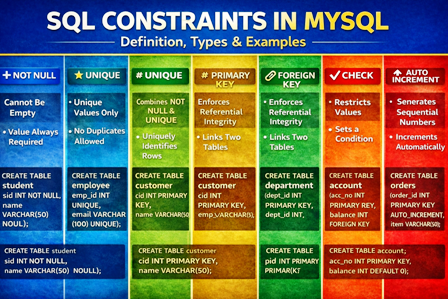

SQL Constraints in MySQL

Learn SQL Constraints in MySQL with clear definitions, types, syntax, and examples. Covers NOT NULL, UNIQUE, PRIMARY KEY, FOREIGN KEY, CHECK, DEFAULT, and AUTO_INCREMENT.

SQL Constraints in MySQL:

What are SQL Constraints?

SQL constraints are rules applied to table columns to restrict invalid data and maintain data integrity.
They ensure that the data in the database is:

• valid
• consistent
• reliable

Constraints can be applied:

• at the column level (single column)
• at the table level (multiple columns)

Types of SQL Constraints

1. NOT NULL Constraint

Prevents storing NULL (empty) values.

CREATE TABLE student (

    sid INT NOT NULL,

    name VARCHAR(50) NOT NULL

);

2. UNIQUE Constraint

Ensures that no duplicate values are inserted.

CREATE TABLE employee (

    emp_id INT UNIQUE,

    email VARCHAR(100) UNIQUE

);

3. PRIMARY KEY Constraint

A primary key:

• uniquely identifies each row
• is automatically NOT NULL and UNIQUE

CREATE TABLE customer (

    cid INT PRIMARY KEY,

    name VARCHAR(50)

);

Composite Primary Key (multiple columns)

CREATE TABLE enrollment (

    sid INT,

    course_id INT,

    PRIMARY KEY (sid, course_id)

);

4. FOREIGN KEY Constraint

Maintains referential integrity between tables.

CREATE TABLE department (

    dept_id INT PRIMARY KEY,

    dept_name VARCHAR(50)

);

CREATE TABLE employee (

    emp_id INT PRIMARY KEY,

    emp_name VARCHAR(50),

    dept_id INT,

    FOREIGN KEY (dept_id) REFERENCES department(dept_id)

);

You cannot add an employee to a non-existing department.

5. CHECK Constraint

Restricts values stored in a column.

CREATE TABLE product (

    pid INT PRIMARY KEY,

    price INT CHECK (price > 0),

    quantity INT CHECK (quantity >= 1)

);

Note: MySQL versions earlier than 8.x parsed CHECK but did not enforce it.
MySQL 8+ enforces CHECK constraints.

6. DEFAULT Constraint

Assigns a value automatically when no value is provided.

CREATE TABLE account (

    acc_no INT PRIMARY KEY,

    balance INT DEFAULT 0

);

If no value is entered, the balance becomes 0.

7. AUTO_INCREMENT (MySQL specific)

Automatically generates sequential numbers.

CREATE TABLE orders (

    order_id INT PRIMARY KEY AUTO_INCREMENT,

    item VARCHAR(50)

);

Adding Constraints to an Existing Table

Add Primary Key

ALTER TABLE student

ADD CONSTRAINT pk_student PRIMARY KEY (sid);

Add Foreign Key

ALTER TABLE employee

ADD CONSTRAINT fk_dept

FOREIGN KEY (dept_id) REFERENCES department(dept_id);

Dropping Constraints

Drop Primary Key

ALTER TABLE student

DROP PRIMARY KEY;

Drop Foreign Key (MySQL requires the constraint name)

ALTER TABLE employee

DROP FOREIGN KEY fk_dept;

Important Points

• A primary key cannot contain NULL values
• A table can have:
  • one primary key
  • multiple unique keys
• Foreign key values must exist in the parent table
• A composite key consists of more than one column
• DEFAULT assigns automatic values
• CHECK restricts values based on a condition

Queries with Constraints

1. Create the Supplier table with a Primary Key constraint

ALTER TABLE Supplier

ADD PRIMARY KEY (SID);

2. Create the Supplies table with a Foreign Key constraint

supplier.SID and part.PID must exist
data types must match

CREATE TABLE supplies (

    SID INT,

    PID VARCHAR(5),

    qty INT NOT NULL,

    date_supplied DATE,

    PRIMARY KEY (SID, PID, date_supplied),

    FOREIGN KEY (SID) REFERENCES supplier(SID),

    FOREIGN KEY (PID) REFERENCES part(PID)

);

3. Create the Part table with a UNIQUE constraint

CREATE TABLE Part (

    PID VARCHAR(5) PRIMARY KEY,

    pname VARCHAR(20),

    color VARCHAR(20),

    price DECIMAL(10,2) NOT NULL,

    UNIQUE (pname, color)

);

4. Create the Supplier table with CHECK constraints

CREATE TABLE Supplier (

    SID INT PRIMARY KEY,

    Sname VARCHAR(50) NOT NULL,

    branch VARCHAR(30) NOT NULL,

    city VARCHAR(30) NOT NULL,

    phone CHAR(10),

    CHECK (SID > 0),    CHECK (CHAR_LENGTH(Sname) >= 2),    CHECK (phone REGEXP ‘^[0-9]{10}$’),

    CHECK (city IN (‘Delhi’,’Mumbai’,’Pune’,’Goa’,’Chennai’,’Kolkata’)),    CHECK (branch <> ”)

);

5. Create the Supplier table with DEFAULT constraints

CREATE TABLE Supplier (

    SID INT PRIMARY KEY,

    Sname VARCHAR(50) NOT NULL,

    Branch VARCHAR(30) DEFAULT ‘General’,

    City VARCHAR(30) DEFAULT ‘Delhi’,

    State VARCHAR(30) DEFAULT ‘Maharashtra’,

    Phone BIGINT

);

Insert example: INSERT INTO Supplier (SID, Sname, Phone) VALUES (202401, ‘Sanika’, 9087678976);

Important Points

• PRIMARY KEY = UNIQUE + NOT NULL
• FOREIGN KEY enforces referential integrity
• UNIQUE allows one NULL value
• CHECK is fully enforced only in MySQL 8+
• DEFAULT provides automatic values
• AUTO_INCREMENT can be added to a primary key
